one. According to the wiring of the distribution box, strip the appropriate length of cable sheath to expose the metal armor.
two. Take an appropriate length of armour and remove the excess to handle the cable.
three. Pass the processed cable through parts 6 and 5 in turn, with the seal in part 6

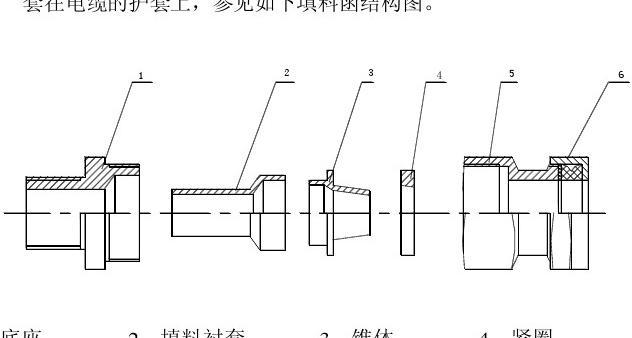

1.6. Nut 5. Filler body
four. The metal armored part is turned through 4 to ground the cable. Then, pass the cable core through 3 and 2 in sequence.
Fives. Mix the matched SG-100 filler materials into desired fillers. Then add the fillers to the gap between the cores of the cable core and around the core wire so that its size is close to the internal diameter of the part 2 and the cavity of the part 3 is at the same time. Also added in the amount of filler.
six. Insert the conical part of part 3 into the armor and place part 2 onto part 3.
Seven. Screw part 1 into the inlet hole of the distribution box. Insert the cable through Parts 2-6 into Part 1, and then screw Part 5 onto Part 1. In this way, the part 4 is pressed against the metal sheath and the cone of the part 3, and the part 2 is fastened to the part 3.
Eight. Fasten the part 6 to the part 5 so that the seal in the part 6 is fastened to the cable jacket.
nine. After the stuffing box is installed, it is necessary to ensure that the packing sleeve is filled with stuffing, no bubbles, etc., so as not to affect its performance.
note:
1. Care should be taken when threading, do not damage the cable jacket.
2. The cable should be wiped before packing, and the excess packing on the parts after packing should be wiped clean.
two. Take an appropriate length of armour and remove the excess to handle the cable.
three. Pass the processed cable through parts 6 and 5 in turn, with the seal in part 6
1.6. Nut 5. Filler body
four. The metal armored part is turned through 4 to ground the cable. Then, pass the cable core through 3 and 2 in sequence.
Fives. Mix the matched SG-100 filler materials into desired fillers. Then add the fillers to the gap between the cores of the cable core and around the core wire so that its size is close to the internal diameter of the part 2 and the cavity of the part 3 is at the same time. Also added in the amount of filler.
six. Insert the conical part of part 3 into the armor and place part 2 onto part 3.
Seven. Screw part 1 into the inlet hole of the distribution box. Insert the cable through Parts 2-6 into Part 1, and then screw Part 5 onto Part 1. In this way, the part 4 is pressed against the metal sheath and the cone of the part 3, and the part 2 is fastened to the part 3.
Eight. Fasten the part 6 to the part 5 so that the seal in the part 6 is fastened to the cable jacket.
nine. After the stuffing box is installed, it is necessary to ensure that the packing sleeve is filled with stuffing, no bubbles, etc., so as not to affect its performance.
note:
1. Care should be taken when threading, do not damage the cable jacket.
2. The cable should be wiped before packing, and the excess packing on the parts after packing should be wiped clean.
